Double Clamp Earth Resistance Meter Tester Soil Resistivity Meter with 3-Pole Range 30 Kilohms Resistance 100V Voltage 1000A Current Data Upload Function
4.4 (139 items)
Limited Time SaleUS$546.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210913908 | Release Date | 2026/04/04 | List Price | US$364.00 | Model Number | 210913908 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Double clamp multi-function grounding resistance tester is also called double clamp grounding resistance tester. The advanced grounding resistance tester integrates a variety of measurement methods. In addition to the traditional function of ancillary grounding resistance, it also has the unique function of measuring without auxiliary ground.
- It uses a large LCD gray screen backlight display and microprocessor technology, through the microprocessor control precision 4-wire method, 3-wire method and simple 2-wire method, selection method, double clamp method to measure grounding resistance test. Large-diameter current clamp design, using double jaw measurement technology, without the need to hit the auxiliary ground, without the need to isolate the grounding body and equipment to achieve on-line measurement.
- Suitable for telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. Instrument testing is precise, fast, simple, stable and reliable.
- The double clamp multi-function grounding resistance tester is controlled by the microprocessor and can accurately detect the grounding resistance, soil resistivity, grounding voltage, DC resistance and AC current. It uses a fast filtering technique to minimize interference. The resistance value of the auxiliary electrode is displayed on the same screen to facilitate the determination of the measurement error due to environmental factors, and it is convenient to measure the true grounding resistance more accurately.At the same time store 500 sets of data,online monitoring data through monitoring software, USB data uploaded to PC and unique features such as intelligent alarm alert

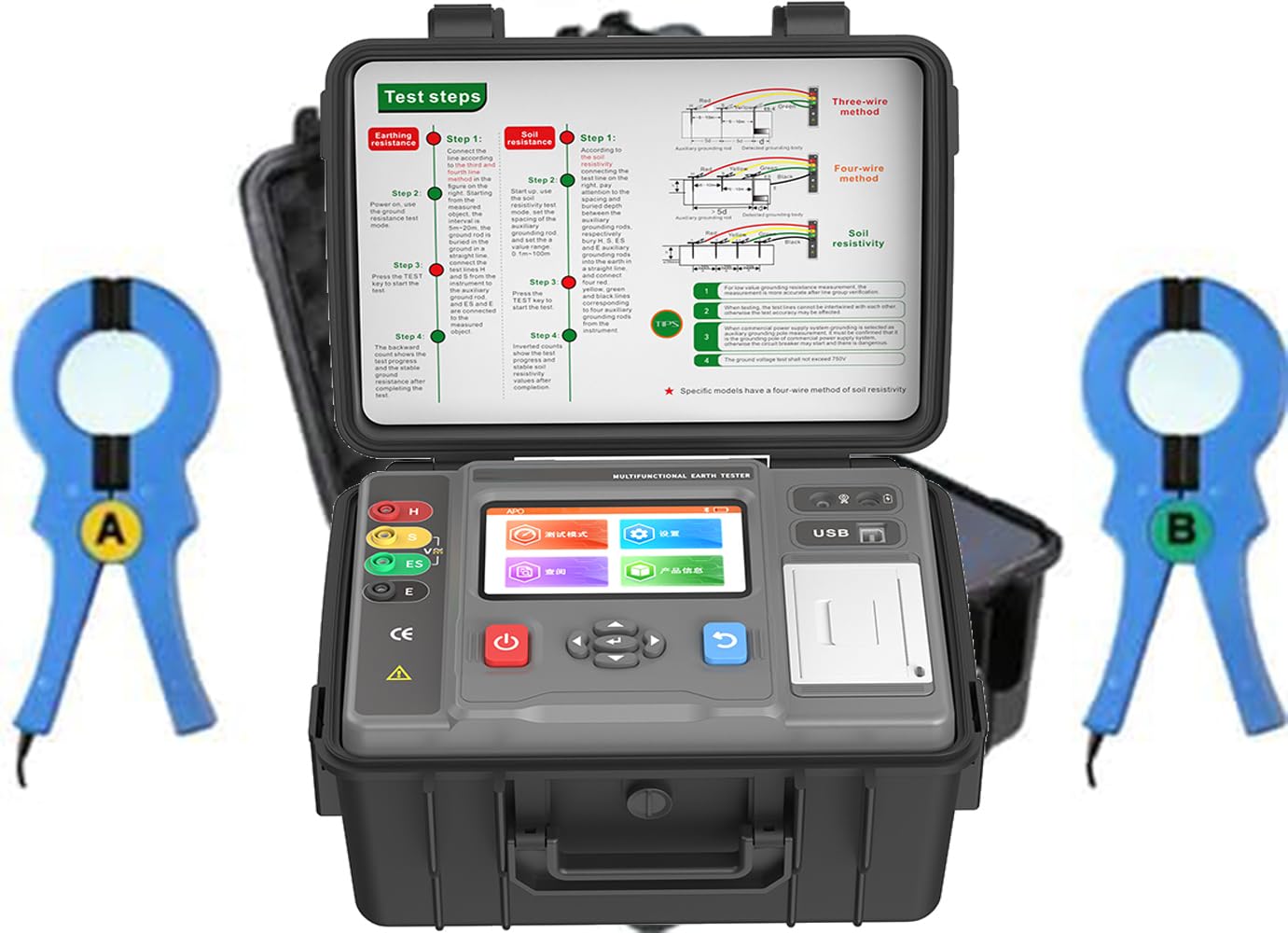

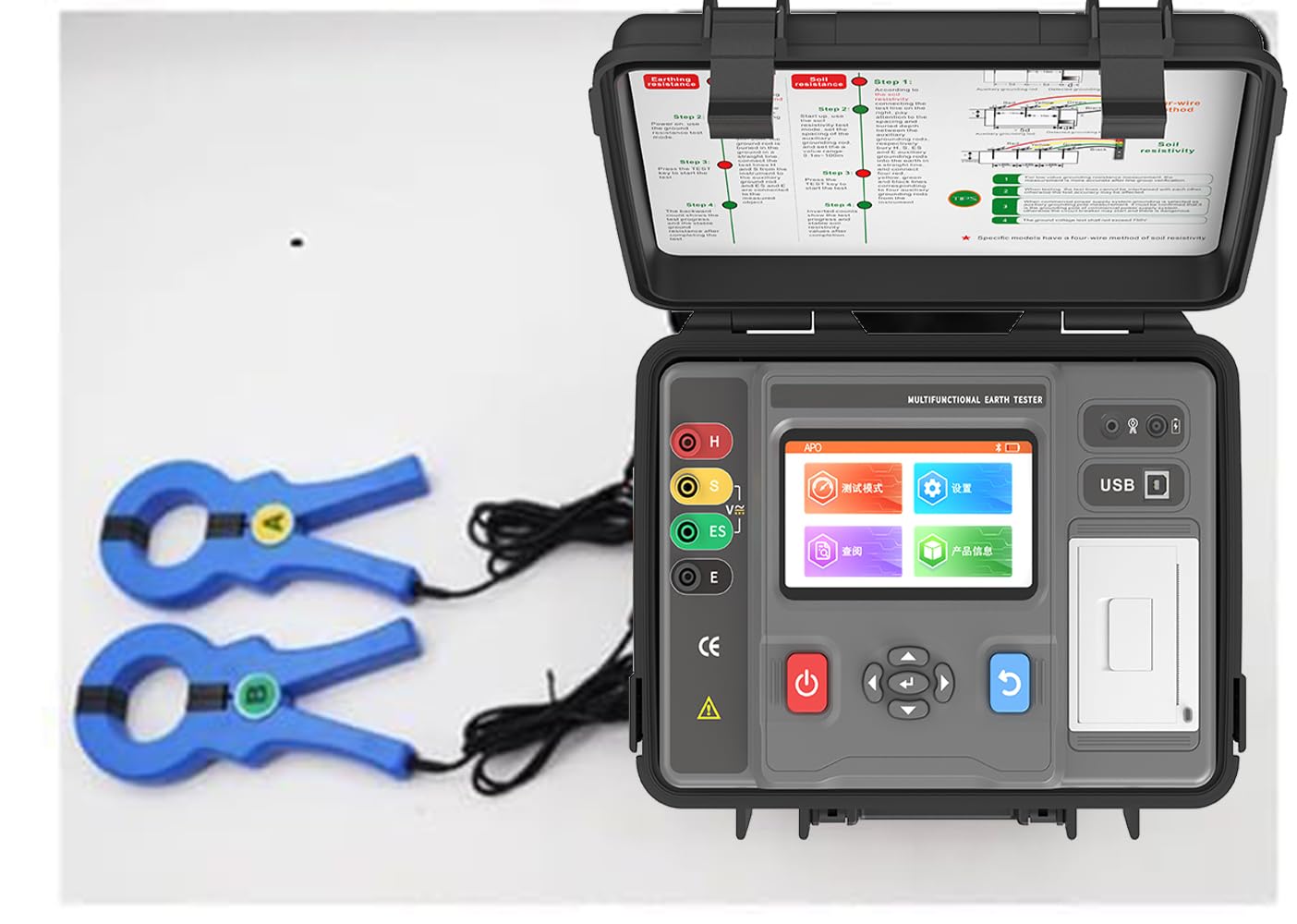

- Double clamp multi-function grounding resistance tester consists of host, monitoring software, test line, USB cable, and grounding rod. It has the functions of reading, checking, saving, reporting and printing of historical data.
| Color | Grey |
|---|---|
| Model | VTSYIQI202404091623VTSYIQI |
| Brand Name | VTSYIQI |
| Style Name | VTSYIQI202404091623VTSYIQI |
| Manufacturer | VTSYIQI202404091623VTSYIQI |
| Power Source | Battery Powered |
| Item Dimensions | 15.75 x 5.91 x 7.87 inches |
| Included Components | MAIN HOST |
