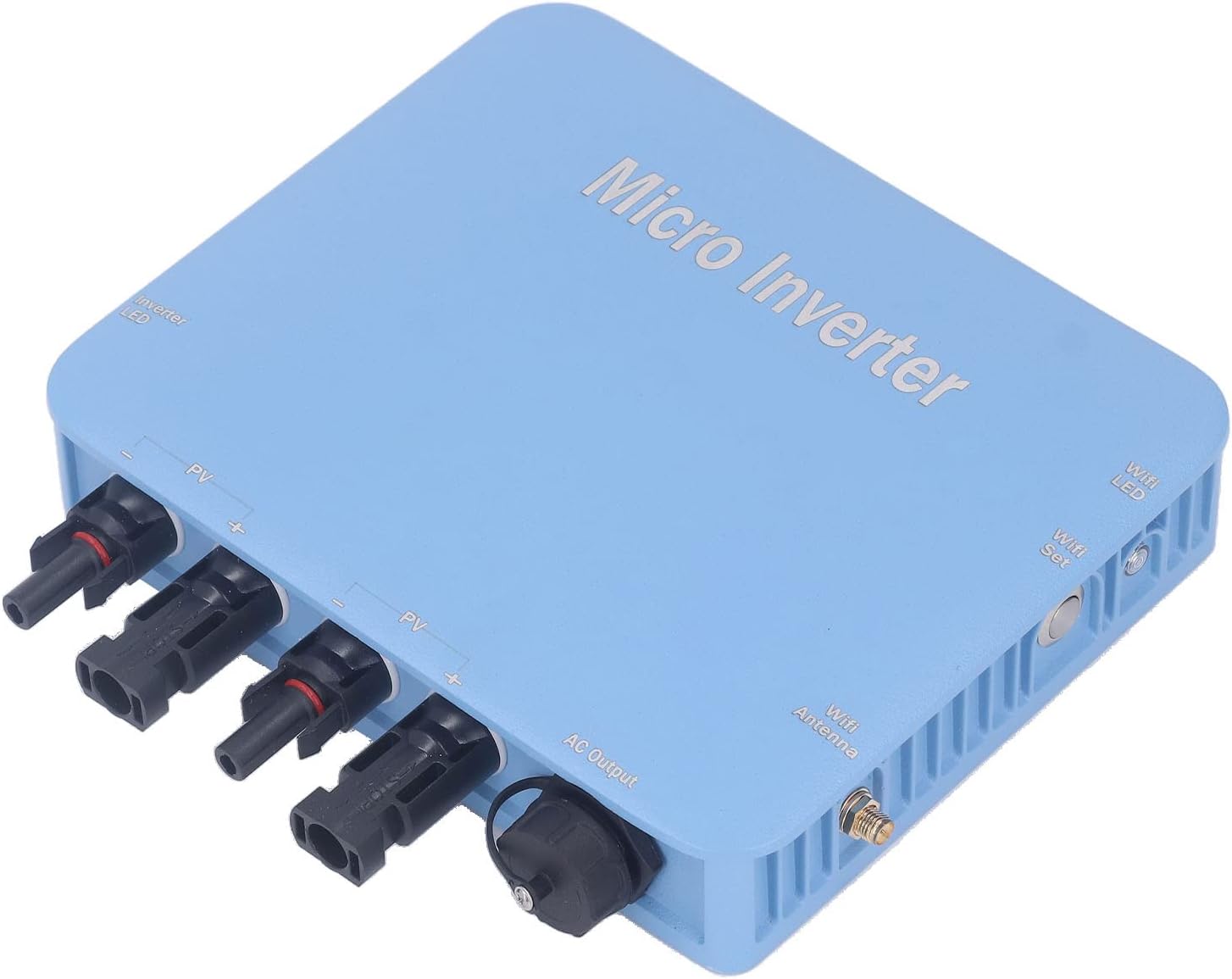

Qinlorgo Solar Grid Connected Inverter, WiFi Controlled IP65 US Plug Micro Inverter DC to AC for Outdoor (1000W)

Specification:Item Type: Micro Grid Connected InverterModel MaySun600 MaySun700 MaySun800 MaySun1000 Photovoltaic input(DC,PV) Number of input connectors 2 Groups MPPT maximum power point tracking voltage range 28V-55V Operating voltage range 20V-60V Maximum tributary input voltage 60V Starting voltage 20V Maximum DC input current 2x10A 2x11.66A 2x13.33A 2x16.66A DC output(AC) Single phase grid type (US standard) 120V/230V automatic recognition Rated output power 580W 650W 760W 950W Maximum output power 600W 700W 800W 1000W Rated AC current 120VAC 4.83A 5.41 6.33 7.91A 230VAC 2.52A 2.82A 3.3A 4.13A Rated AC voltage 120VAC/230VAC Output voltage range 120V:80-160V/230V:180-280V Rated AC frequency 50-60HZ Output frequency range 50Hz:47.5Hz-52.5Hz/60Hz:57.5Hz-62.5Hz Output power factor ＞0.99 Total harmonic span variation of output current Total harmonic distortion Efficiency Maximum conversion efficiency 95% CEC weighted efficiency 120VAC:92.5%/230VAC:93.5% MPPT tracking efficiency 99.90% Night loss ＜700mW Mechanical data Operating ambient temperature -40℃~+65℃ Storage ambient temperature -40℃~+85℃ Maximum current of AC cable 20A class IP65 Cooling mode cooling Other characteristics Communication mode WIFI wireless communication ( monitoring) Isolation characteristic transformer isolation Integrated grounding The PE end of the AC cable is the ground cable of the device and has no other ground port mode Island , voltage , frequency , temperature , current , etc. Plug specification US plugHow to Use:1. Install and fix the inverter on the support of the photovoltaic panel with the screws attached to the machine2. Connect the positive and negative terminals of the connector on the PV panel to the DC input

• WITH HIGH EFFICIENCY: Grid tie inverter, Micro inverter can independently control each component in parallel, to minimize safety risks. The maximum power point tracking function effectively tracks and locks the maximum power output of the solar panel. When the maximum power point of the solar panel is tracked, the power stable output is automatically locked. Two independent maximum power point track(MPPT)
• EASY TO CONTROL: Micro inverter, Inverter built in instrument, you can see the working state of each component, can be operated and monitored through mobile APP, greatly improving the overall efficiency. IP65 , easy to work outdoors

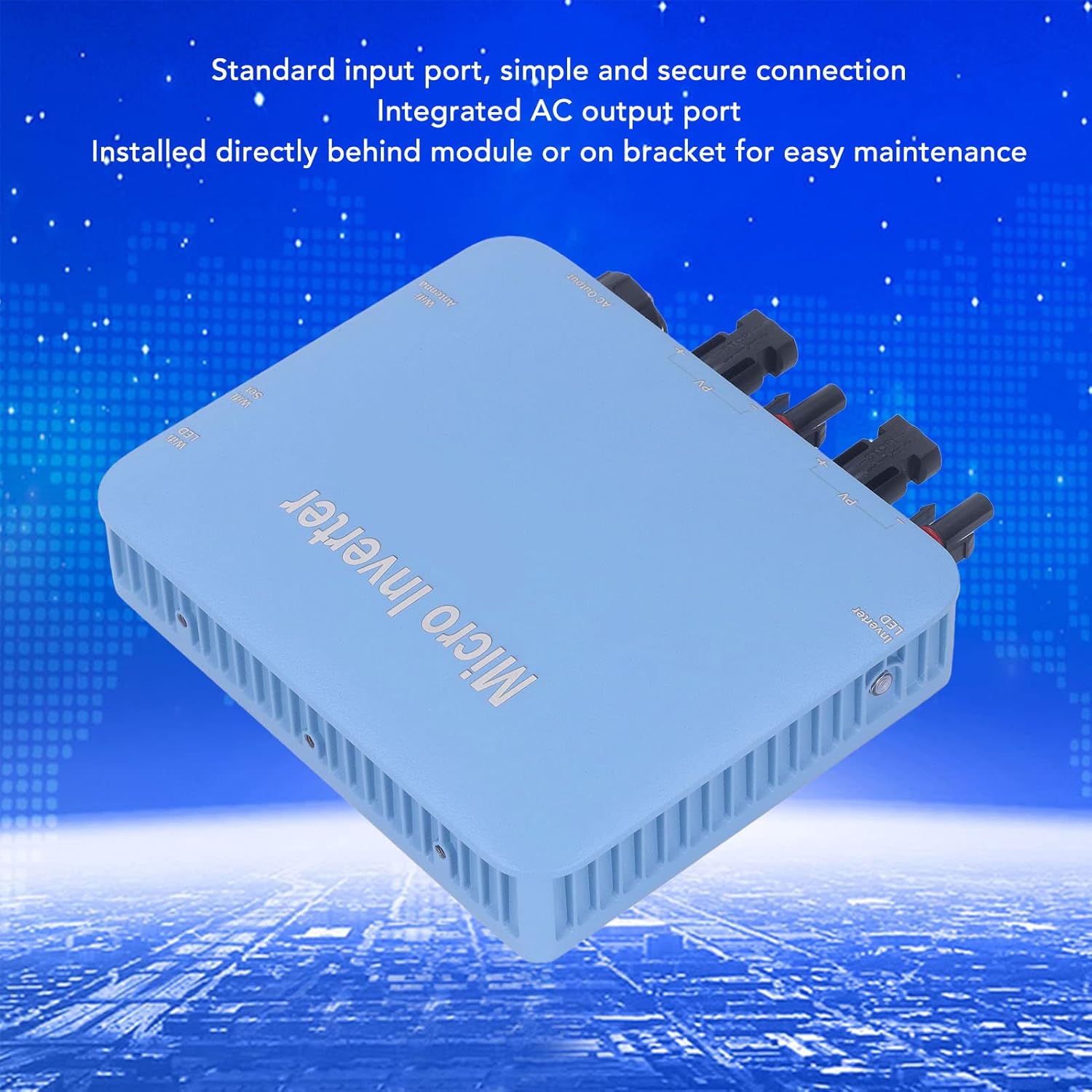

• SIMPLE INSTALLATION: Solar inverter, Adopt standard input port, bring simple and secure connection. Integrated AC output port, can easily connect more machines to increase system power and easily connect to the grid. The micro inverter can be installed directly behind the module or mounted on a bracket for easy maintenance
• PURE SINE OUTPUT: Grid tie solar inverter, Micro inverter output voltage is stable, pure, can adapt to almost all load electrical appliances
• MULTIPLE FEATURES: Micro inverters for solar panels, Solar inverter has island protection: when power grid failure or power failure inverter automatically stop output, overheating protection, short circuit protection, overload protection, voltage protection, frequency protection, temperature protection, current protection, etc.
