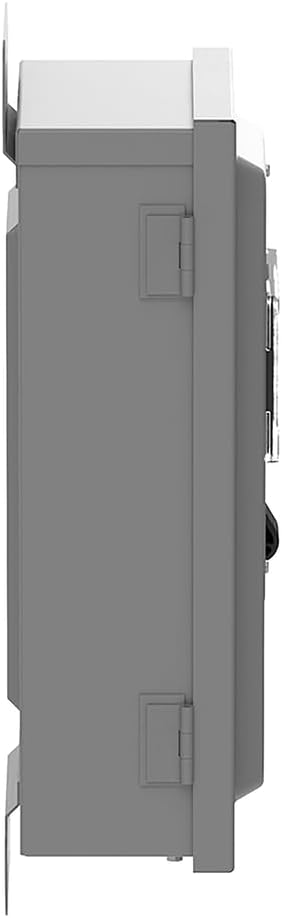

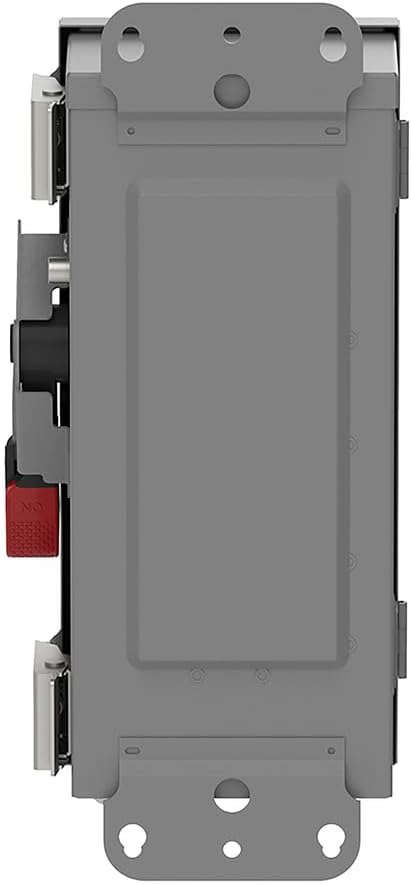

Square D by Schneider Electric VH361AWKGL VisiPact Heavy Duty Safety Switch with Viewing Window and Red (On) and Black (Off) Indicators, Fusible 3 Pole, 30A, 600VAC/600VDC, Type 12
4.3 (70 items)
Limited Time SaleUS$300.68 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211030805 | Release Date | 2026/04/04 | List Price | US$200.45 | Model Number | 211030805 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 30A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12-AWG 6 aluminium and AWG 14-AWG 6 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
- HEAVY DUTY SAFETY SWITCH: The VisiPact Safety Switch is a reliable, durable, and high-performance switch designed for the most grueling conditions; It has a durability three times greater than NEMA standard to meet your commercial and industrial needs
- SWITCH FEATURES: Viewing window allows visual confirmation with door closed; QR code provides quick access to product info; Dual cover interlock blocks opening cover if switch is on & switching on if cover is open; Handle indicates ON (red) or OFF (black)
- RATINGS: With a rating of 30A with a voltage 600 VAC and 600 VDC, and a short circuit rating of 10kA or 200kA depending on fuses used, this three-blade fusible heavy duty safety switch is ideal for a wide range of commercial and industrial applications
- FUSES & WIRING: Accepts H, K, R fuse types as shipped & can be field modified for J fuses; The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be field-installed; Wire range is AWG 12-AWG 6 aluminium and AWG 14-AWG 6 copper
- STANDARDS: All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828; This switch is Type 12 rated with a galvannealed steel enclosure
| Color | Grey |
|---|---|
| Model | VH361AWKGL |
| Wattage | 18000 watts |
| Terminal | Blade |
| Brand Name | Schneider Electric |
| Unit Count | 1.0 Count |
| Switch Type | Safety Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Schneider Electric |
| Actuator Type | Hinge Lever |
| Material Type | Copper |
| Mounting Type | Surface Mount |
| Connector Type | Screw Terminal |
| Control Method | Touch |
| Current Rating | 30 Amps |
| Operation Mode | manual |
| Item Dimensions | 5.2 x 6.5 x 14.57 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 600 Volts |
| Specification Met | UL |
| Included Components | Light |
| Number of Positions | 3 |
| Warranty Description | No Warranty |
| Connectivity Protocol | X-10 |
